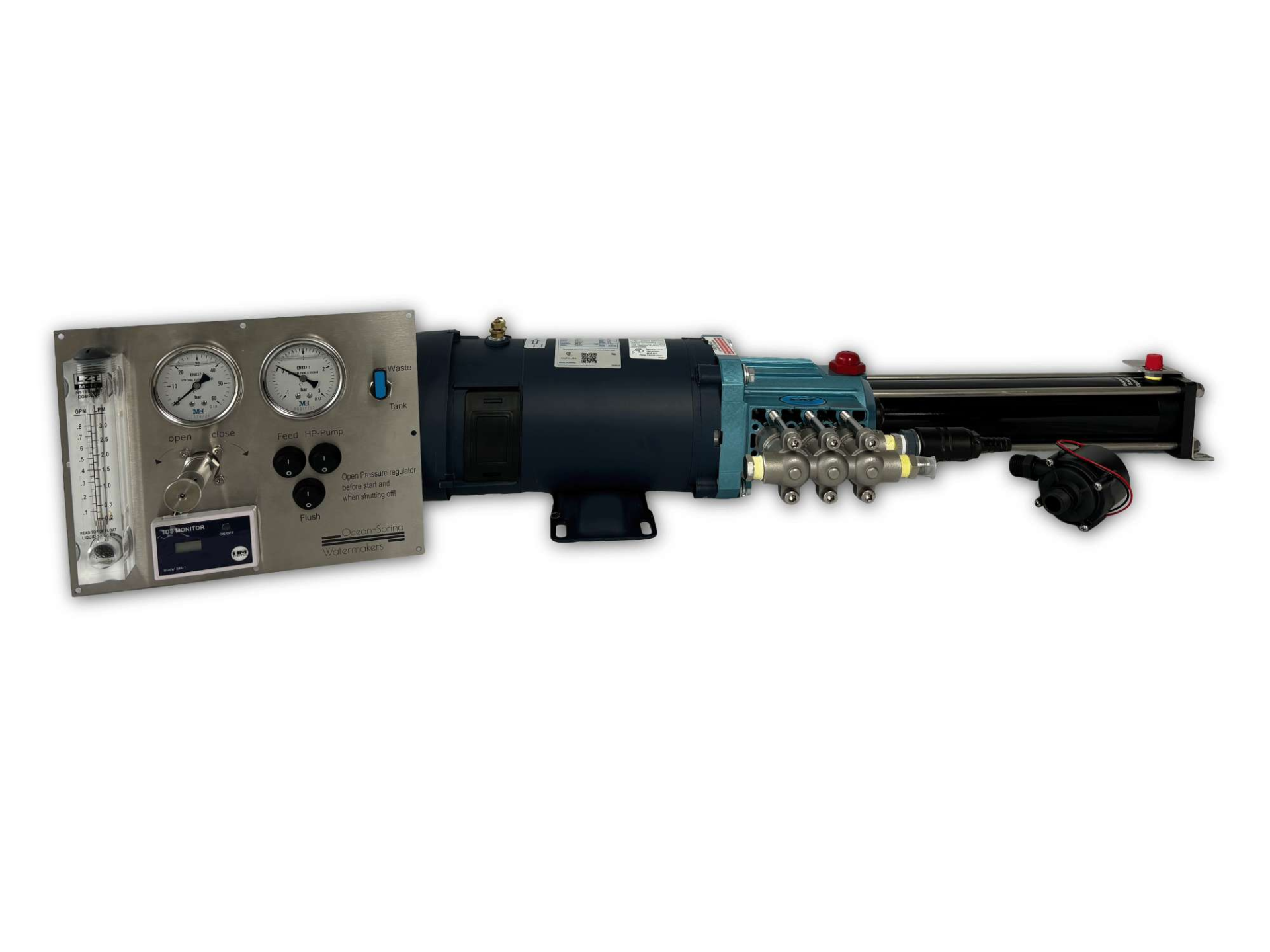

DC 120LT SU YAPICI
Ocean-Spring DC120, yüksek kaliteli bileşenlerden üretilmiş 5 yıl membran garantili modüler bir su yapıcı sistemidir.24V veya 48V DC voltajla çalışacak şekilde tasarlanmıştır ve doğrudan batarya ile kullanılabilir.
TTeknik Özellikler:
- Güç Tüketimi:
- 24V: 38 A
- 48V: 19 A
- Üretim Kapasitesi:
- 2 membran: 120 l/saat ± %10
- Çalışma Basıncı: 55 bar
- Maksimum Sistem Basıncı: 60 bar
- İzin Verilen Deniz Suyu Sıcaklık Aralığı: 5°C - 45°C
- Tuz Giderme Kapasitesi: >%99,4
- Ses Seviyesi (1 m mesafede ölçülmüştür): 67 dB
- Ağırlık:
- 2 membran: 51 kg
Not: Üretim kapasitesi, 35.000 ppm tuzluluk ve 25°C su sıcaklığına dayanmaktadır.
Sistem, kurulumu için gerekli tüm hortumlar ve vidalarla birlikte teslim edilir.Opsiyonel olarak otomatik yıkama (autoflush) seçeneği de mevcuttur. Bu seçenekle, kontrol panelinde ayarlanabilir süre ve aralıklarla çalışan bir solenoid valf bulunur; böylece sistemin korunması için manuel müdahale gerekmez.
Ürünün çalışma prensibini, teknik özelliklerini ve kullanım kolaylığını daha yakından görmek için:
https://youtu.be/Wni7M00_vu0
Our modular Watermaker
Our modular watermaker combines high-quality components with a rugged design, ensuring reliability. Designed for simplicity, our watermakers are free of complex electronics, making them easy to use and maintain — no tedious troubleshooting or worrying about fragile parts. With high output capacity, you’ll have plenty of fresh water to fuel your adventures, whether you’re on a coastal trip or a grand voyage.
Installation is a breeze with our plug-and-play setup, allowing you to get up and running in no time. Plus, our customizing options ensure the system is tailored to fit your unique needs.
Quality, simplicity, and reliability — just what every sailor needs.
Learn all about our systems below.
Our modular watermaker in detail
System Layout
- – Feed pump & coarse dirt filter
- – Leak-free, efficient & suitable for continuous operation
- – Pre-filter & activated carbon filter for rinse water
- – High pressure pump – SS316
- – From the market leader Cat Pump
- – Available with AC & DC motors
- – Junction box
- – All cables come with connectors – Plug & Play Installation!
- – Exclusively industrial technology – standard components
- – Membrane unit
- – Control panel
Watermaker Control panel
By standard, we deliver our modular watermakers with a stainless steel control panel. All operational processes can be carried out on the control panel, which significantly increases the comfort of use.
-
- – Switching on the pumps + Flushing cycle with Autoflush option
- – Setting the operating pressure on the regulator
- – Spring-based pressure regulator for comfortable operation
- – Made from duplex steel for maximum reliability
- – Checking the feed pressure
- – You don’t have to guess when to replace the pre-filters
- – Control the product water and switch from test outlet to tank.
Our specially manufactured pressure regulator works with a spring and can thus compensate for flow fluctuations. The result is a very constant operating pressure, which can also be adjusted easily and in a short matter of time.
On request, a compact version without product water control can also be offered. Also automated product water control can be added to such a panel separately.
Watermaker High-Pressure pump
One of the two core pieces of a conventional watermaker is the high-pressure pump. It is the most expensive individual component and usually determines the longevity and reliability of the system.
Reason enough not to make any compromises here. Cat Pumps is one of the market leaders in the industrial high-pressure pump segment and one of the few manufacturers that have proven themselves over the years.
- – SS316 pump head & ceramic plungers ensuring long service life
- – Extremely robust and reliable – designed for many thousands of operating hours.
- – Easy to maintain – The pump head can be disassembled very quickly and easily if necessary.
- – Cat Pumps worldwide dealer network makes it possible to quickly obtain spare parts if necessary.
Watermaker Membrane unit
The second core piece – the membrane. This is where the actual desalination takes place. In addition to the pure performance data of the membrane, which are decisive for the salinity of the product water and the specific energy consumption of the system, the manufacturing quality also determines the mechanical strength of the membrane and thus its longevity. Among the many manufacturers in the reverse osmosis membrane market, Dupont stands out for its outstanding performance and durability.
Reason enough for us not to go cheap here and to focus on quality. Of course in standard sizes, which can be easily replaced anywhere in the world if in doubt.
To house the membrane we make our own membrane housings allowing for a very simple and compact installation. All of our tubes are pressure tested and except for the fittings (316) there is no metal in contact with the sea water. So there is no reason to worry about corrosion.
